PACKOUT Compatible Triple Drill & Driver Holder STL – 4 Versions | Digital Download

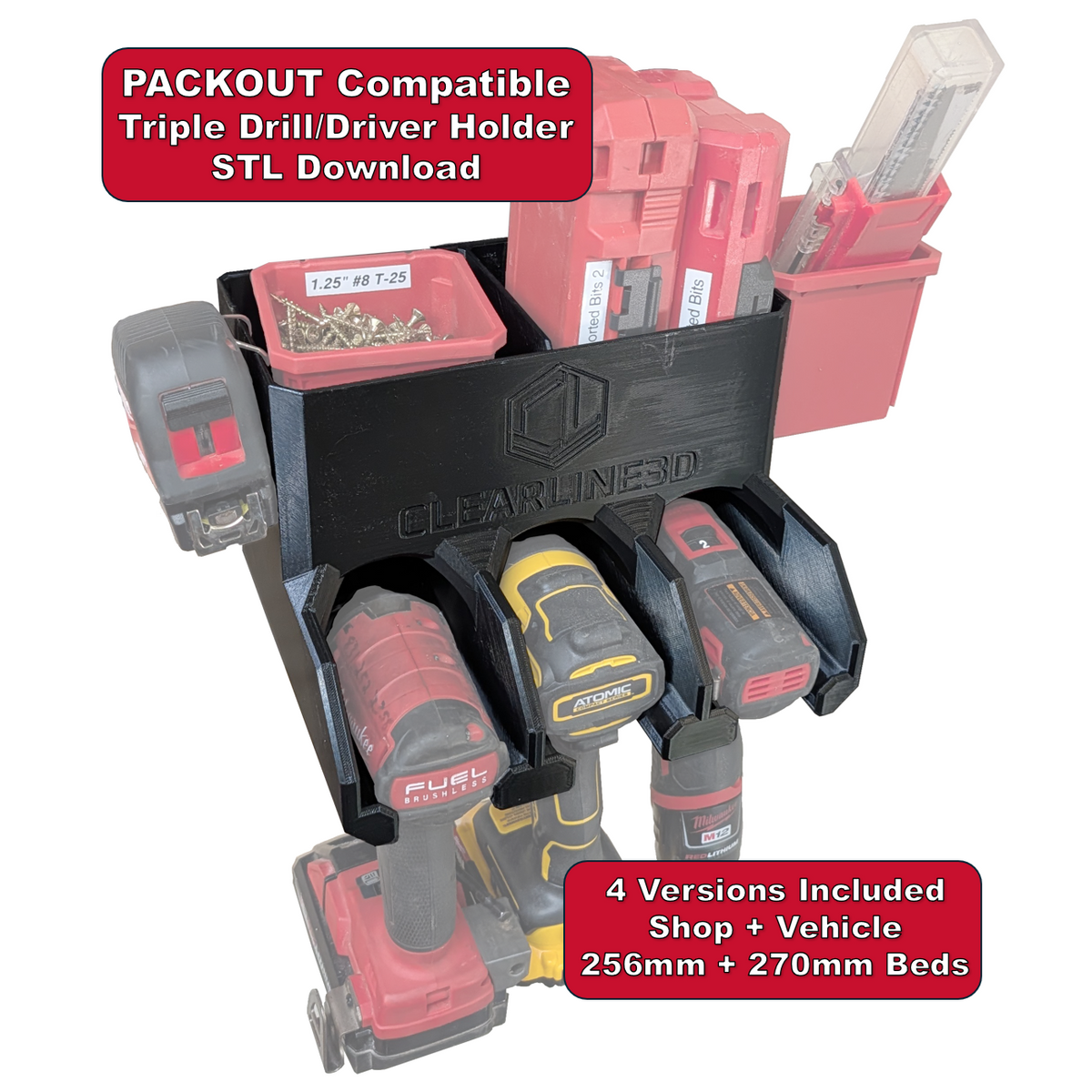

PACKOUT-Compatible Triple Drill & Driver Holder STL

Build your own high-capacity cordless tool storage with the ClearLine3D Triple Drill & Driver Holder STL bundle.

Designed and tested for real-world shop and mobile use, this holder stores three cordless drills, impact drivers, or similarly sized tools while keeping them visible, organized, and ready to grab.

This download includes four versions so you can choose the design that best fits both your installation and your 3D printer.

Four Versions Included

Your purchase includes:

• Shop – 256mm Bed
• Shop – 270mm+ Bed / Minimal Supports
• Vehicle – 256mm Bed
• Vehicle – 270mm+ Bed / Minimal Supports

DIGITAL DOWNLOAD ONLY — no physical product will be shipped.

Shop vs. Vehicle

Shop Version

Designed for garages, workshops, sheds, and other stationary installations. The open design provides quick tool access without additional retention tabs.

Vehicle Version

Adds integrated retention tabs to help keep tools secured during movement. Recommended for service trucks, work vans, enclosed trailers, mobile workshops, and similar applications.

256mm vs. 270mm+ Printer Versions

Don't have a large-format printer? The 256mm versions are redesigned to fit common 256 × 256mm print beds.

256mm Bed Version

• Approximate maximum footprint: 248 × 222mm
• Fits 256 × 256mm print beds
• Flat print orientation
• Requires additional supports

270mm+ Bed / Minimal-Support Version

• Approximate maximum footprint: 248 × 268mm
• Requires approximately 270mm of usable bed dimension
• Optimized 45-degree print orientation
• Significantly reduces required support material

If your printer can accommodate the larger version, the 270mm+ file is recommended for reduced support usage.

Compatibility

Designed for compatibility with Milwaukee PACKOUT™ Wall Plates and compatible mounting systems.

Designed for cordless drills, impact drivers, and similarly shaped tools with a body width of approximately 2.75 inches or less.

Tool geometry varies, so verify your tool dimensions before printing if you're unsure about compatibility.

Recommended Materials

PETG
Recommended for garages, workshops, and general-purpose use. 3 perimeters and 12% infill recommended.

ASA / ABS
Recommended for vehicle installations, high-temperature environments, and more demanding applications. 3-4 perimeters and 12-15% infill recommended.

PLA
May be suitable for light-duty indoor use but is not recommended for vehicle interiors or other high-temperature environments. 4-6 perimeters and 12-15% infill recommended.

Print Information

This is a large functional print, so good printer calibration and bed adhesion are important.

The 256mm versions trade additional support material for compatibility with smaller printers.

The 270mm+ versions use an optimized 45-degree orientation to substantially reduce support requirements.

Print settings will vary depending on your printer, filament, nozzle size, and desired strength.

Features

• Stores 3 cordless drills, drivers, or similar tools
• 4 STL versions included
• Shop and Vehicle configurations
• 256mm and 270mm+ printer options
• Integrated retention on Vehicle versions
• PACKOUT-compatible mounting
• Designed for functional FDM printing
• Designed and tested by ClearLine3D

What You'll Need

• FDM 3D printer
• Slicer software
• Appropriate filament
• Basic 3D-printing experience
• Compatible PACKOUT-style mounting system

Digital Product Information

This is an instant digital download containing STL files for 3D printing. No physical product is included or shipped.

Digital purchases are final and non-refundable. If you encounter a missing or corrupted file, contact ClearLine3D and I'll help resolve the issue.

License

Purchase includes a license for personal use and limited small-scale production of physical parts.

The digital files may not be redistributed, shared, uploaded, resold, or otherwise distributed.

Milwaukee PACKOUT™ is a trademark of Milwaukee Tool. ClearLine3D is an independent company and is not affiliated with, sponsored by, or endorsed by Milwaukee Tool.
